Figure 3
Download original image

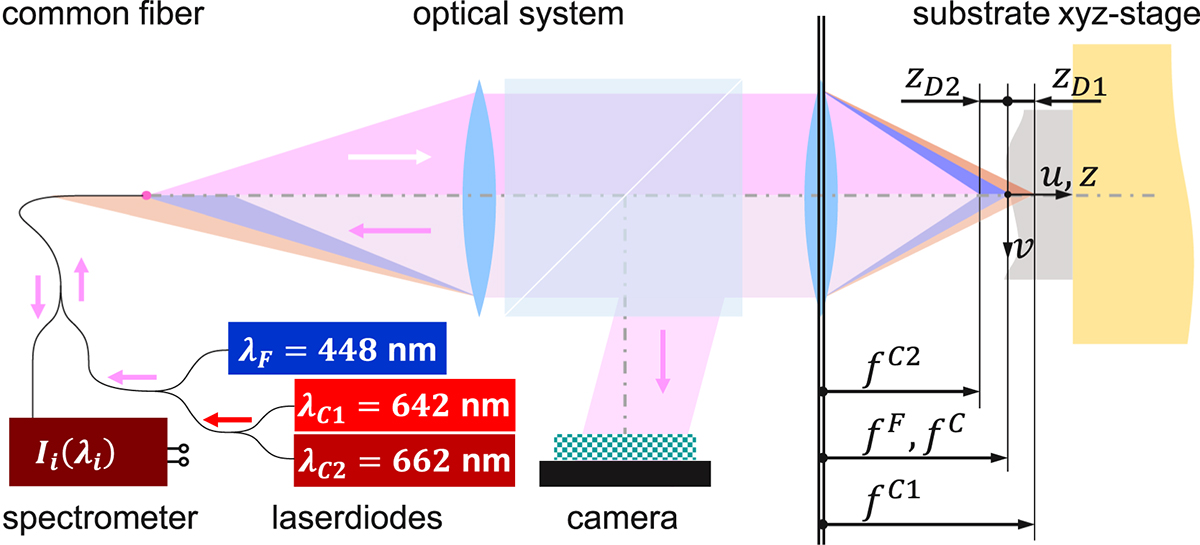

Target schematic of the optical tool, integrated with a chromatic differential confocal probe and its required axial chromatic separation of focal planes. Additionally, angular measurements are realized through a camera chip.
