Figure 5
Download original image

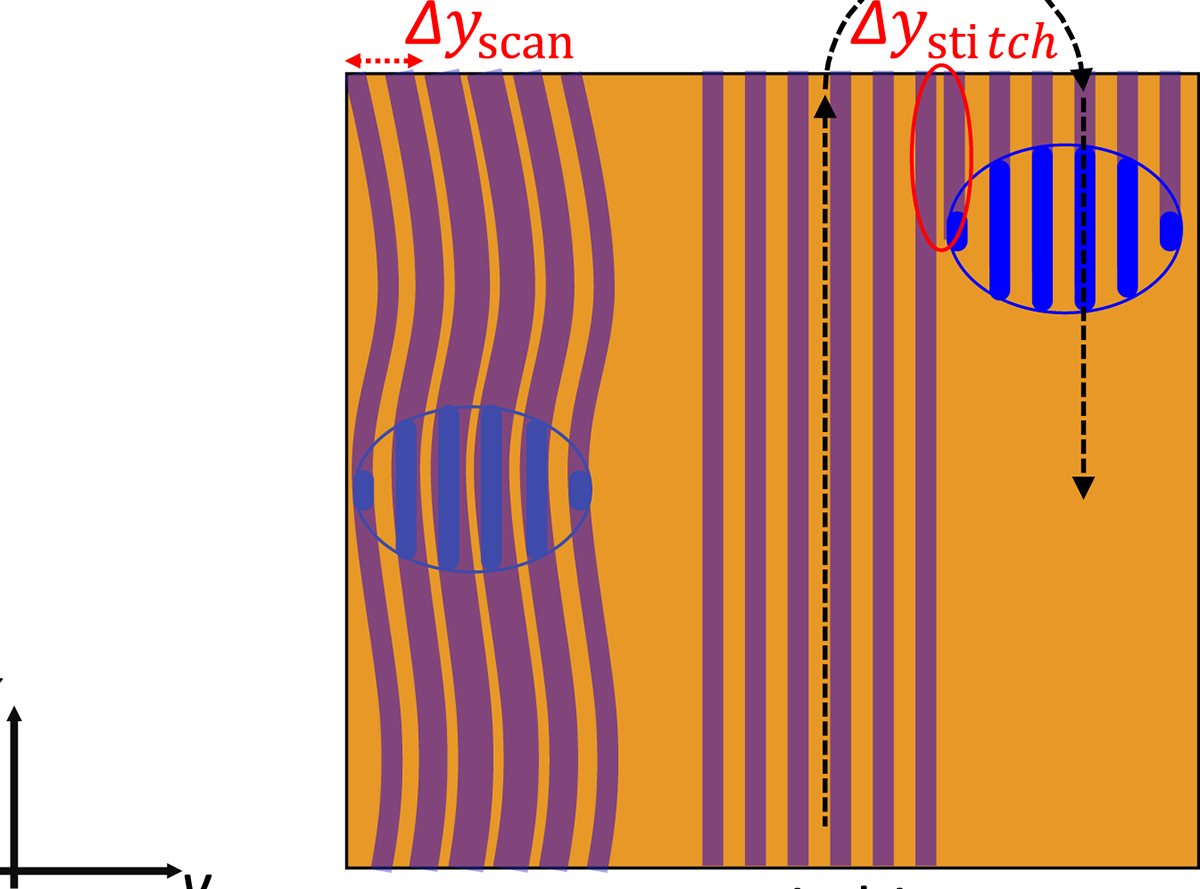

Sketch of the scan-and-stitching error. Positioning errors Δyscan while scanning the photoresist results in contrast loss and deviations of the linear grating. Stitching errors Δystich (red marked area) will result in phase jumps of the linear grating element.
