Figure 24
Download original image

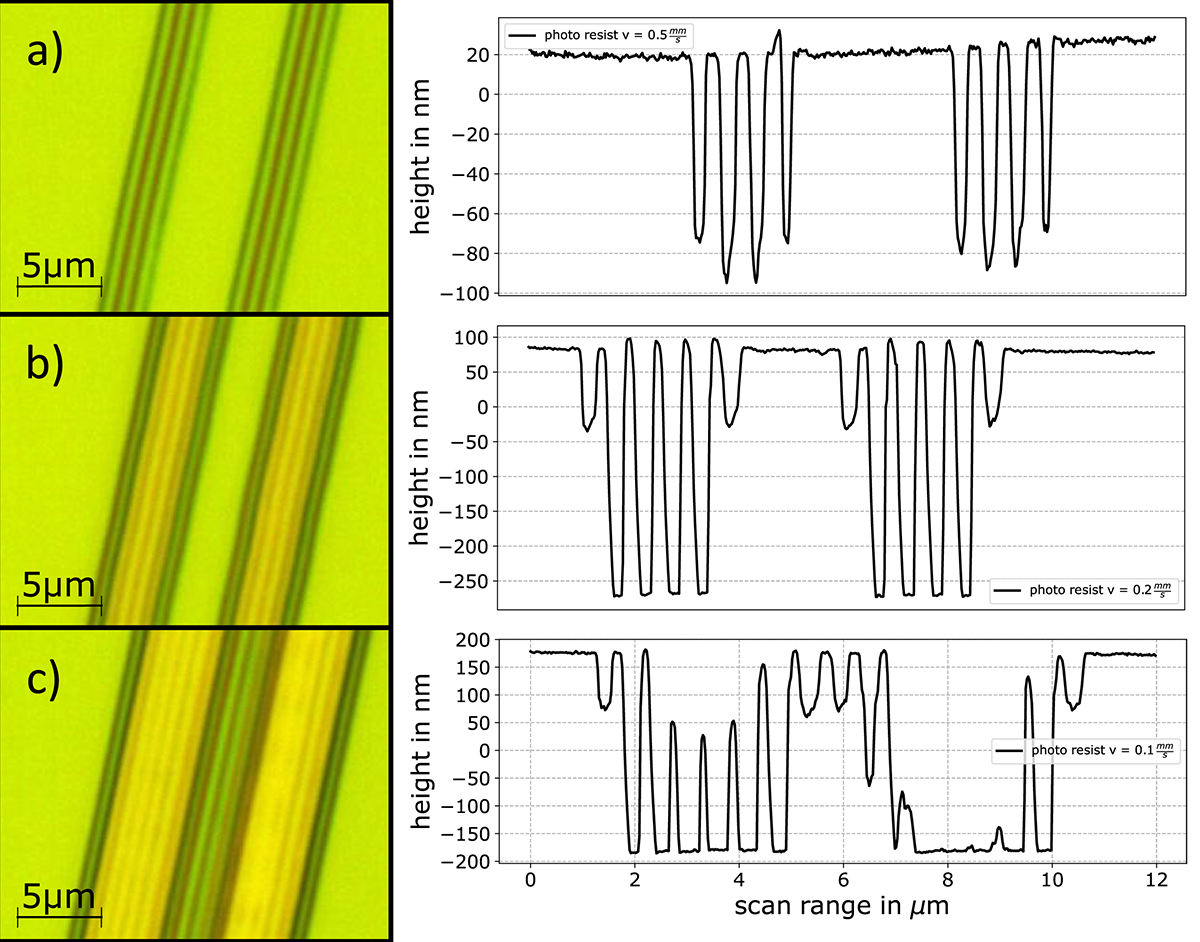

Microscope images and corresponding atomic force microscope (AFM) measurements for photo resist structures with different scan velocities ν. (a) Underexposed structures with ν = 0.5 mm/s, (b) well exposed structures with ν = 0.2 mm/s, (c) overexposed structures with ν = 0.1 mm/s.
