Figure 22
Download original image

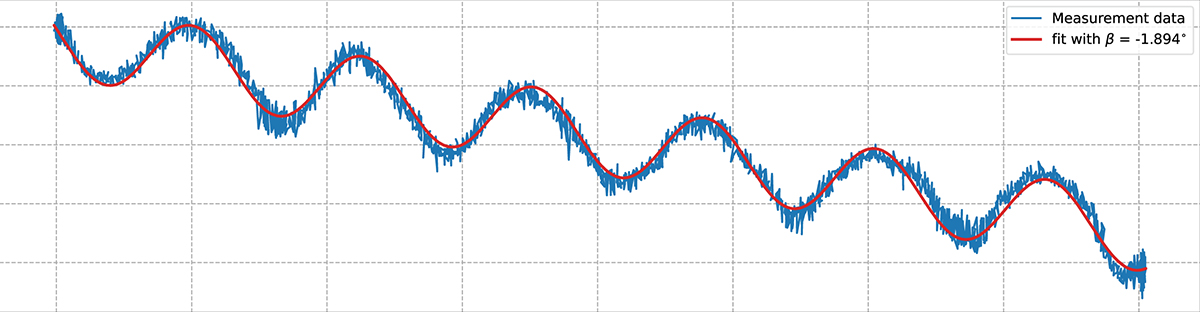

High resolution scan of the writing pattern with 2 μm scan range and 20 nm step size in order to quantify the writing pattern tilt β. While scanning Δz, the fringe movement Δϕ of the fringe pattern is tracked. A functional fit is then applied to determine the gradient of the linear shift of the fringes and therefore to determine β.
