Figure 1
Download original image

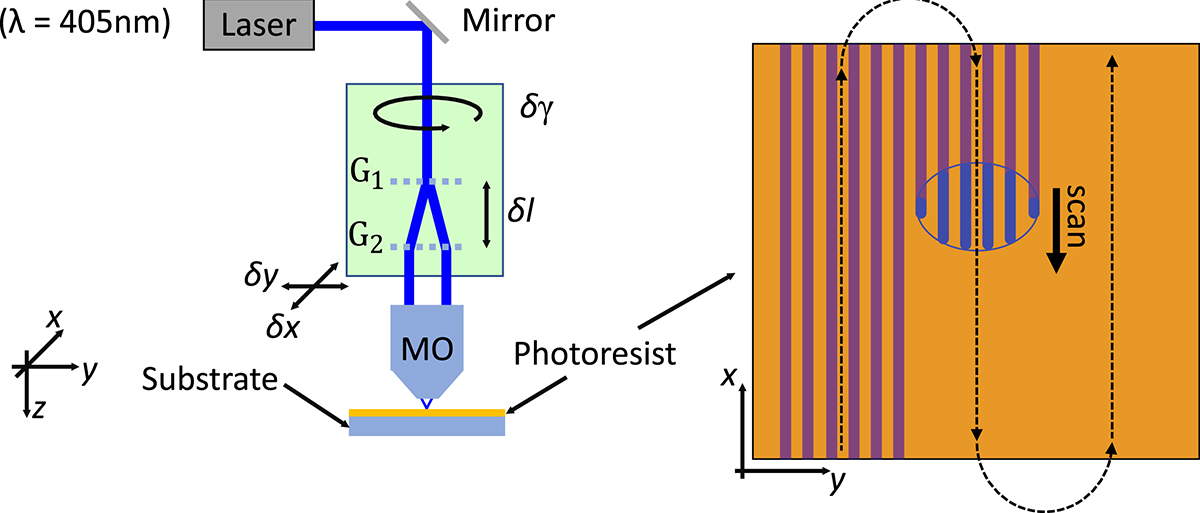

Left: Scheme of the SBIL lithography head. The binary beam splitter gratings G1 and G2 generate two collimated and coherent beams. The green marked area can rotate around the z-axis by angle γ. The mechanical setup above the microscope objective lens MO can be laterally shifted in the x–y-plane. Right: Principal scan-and-stitch process of scanning beam interference lithography.
