Fig. 12
Download original image

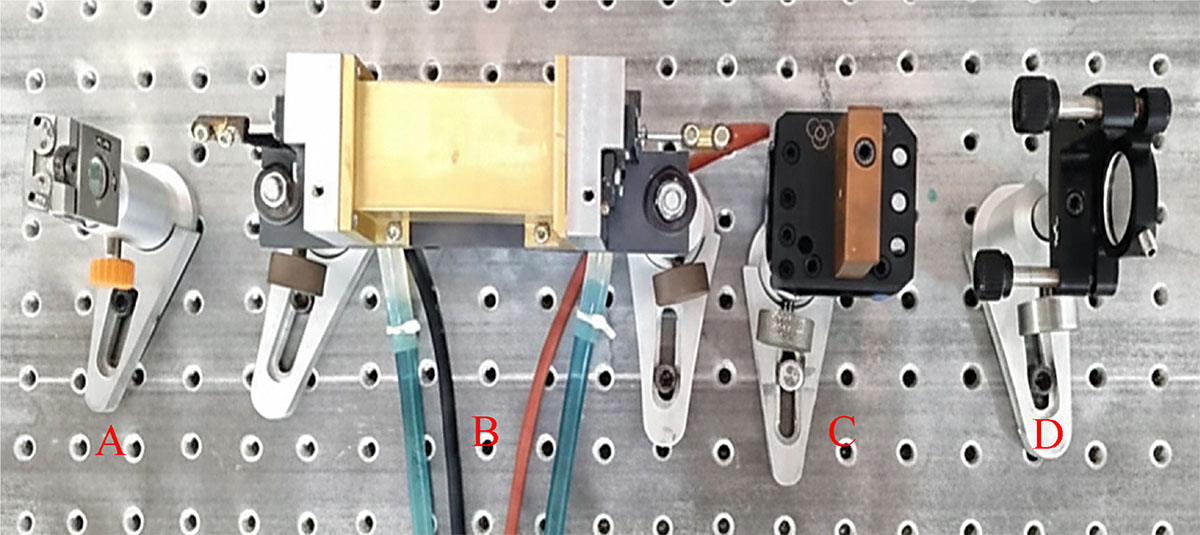

Photo of the experimental setup arrangement of the passive Q-switched Nd:YAG laser cavity with saturated Cr:YAG absorber: (A) concave HR mirror (R = 500 mm), (B) laser head housing the Nd:YAG crystal and flashlamp, (C) Saturated absorber of C:YAG and (D) flat output coupler (T = 40%).
