Figure 3
Download original image

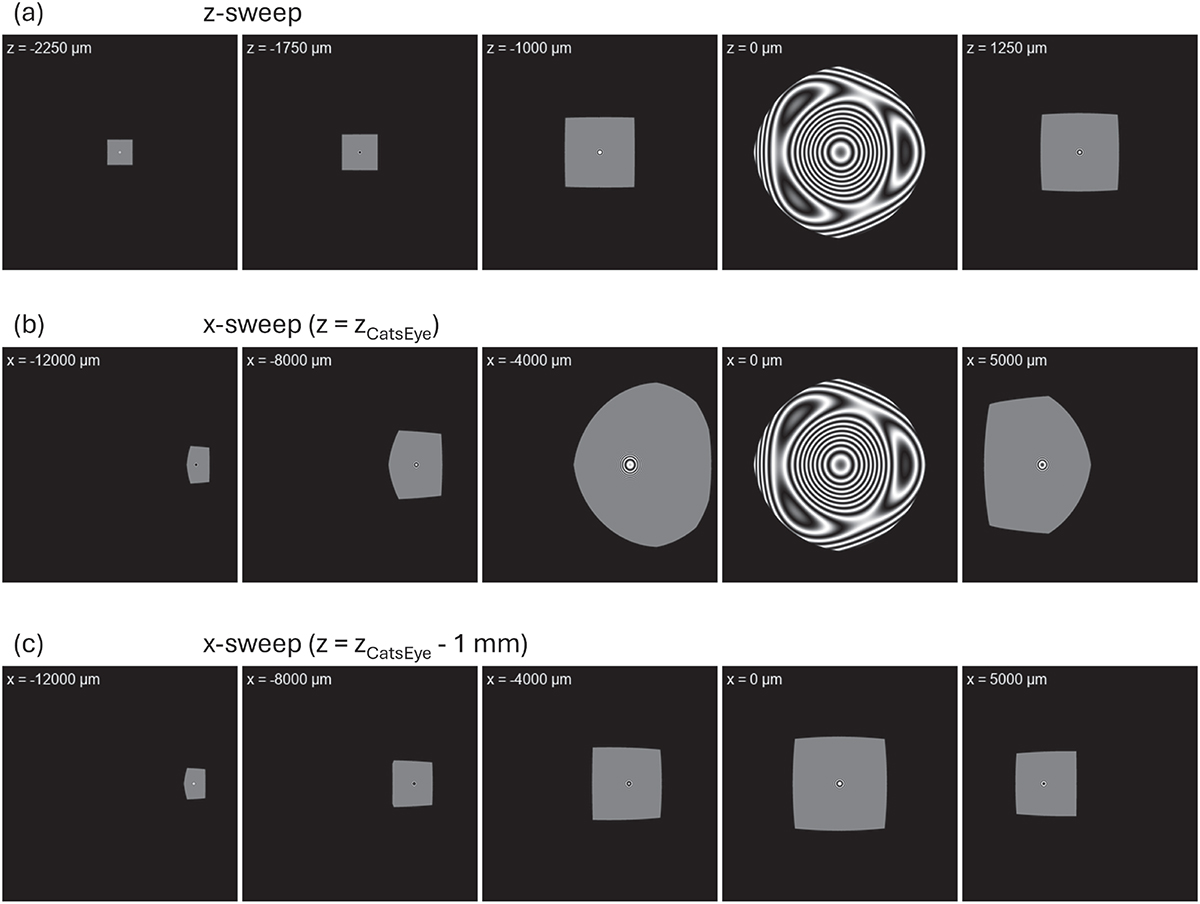

Interferograms for a specimen (asphere) positioned in different positions around the Cat’s Eye reference position. (a) Sweep along the optical axis (z). (b) Sweep perpendicular to the optical axis (lateral sweep in x) in the plane of the Cat’s Eye position. (c) Sweep perpendicular to the optical axis in a plane 1 mm away from the Cat’s Eye position.
