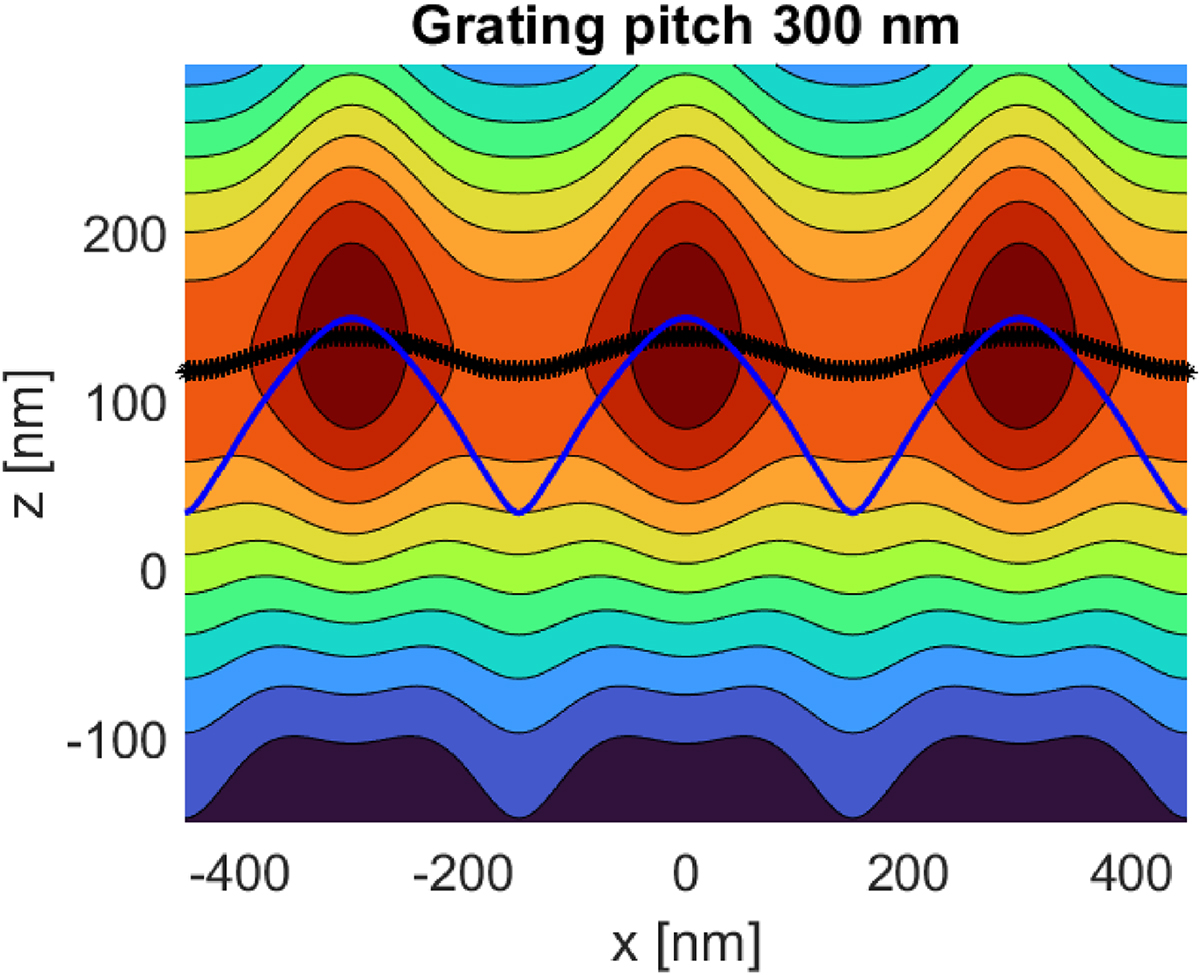

Figure 2
Download original image
Height of grating profile obtained from z-stack image profile (multi colours), grating profile (black stars) from z-stack image directly and grating profile after (blue line) deconvolution of the z-image stack. The nominal height is 138 nm, and the pitch is 300 nm. The intensity of the z-image stack is shown by the colour scale in the background.
