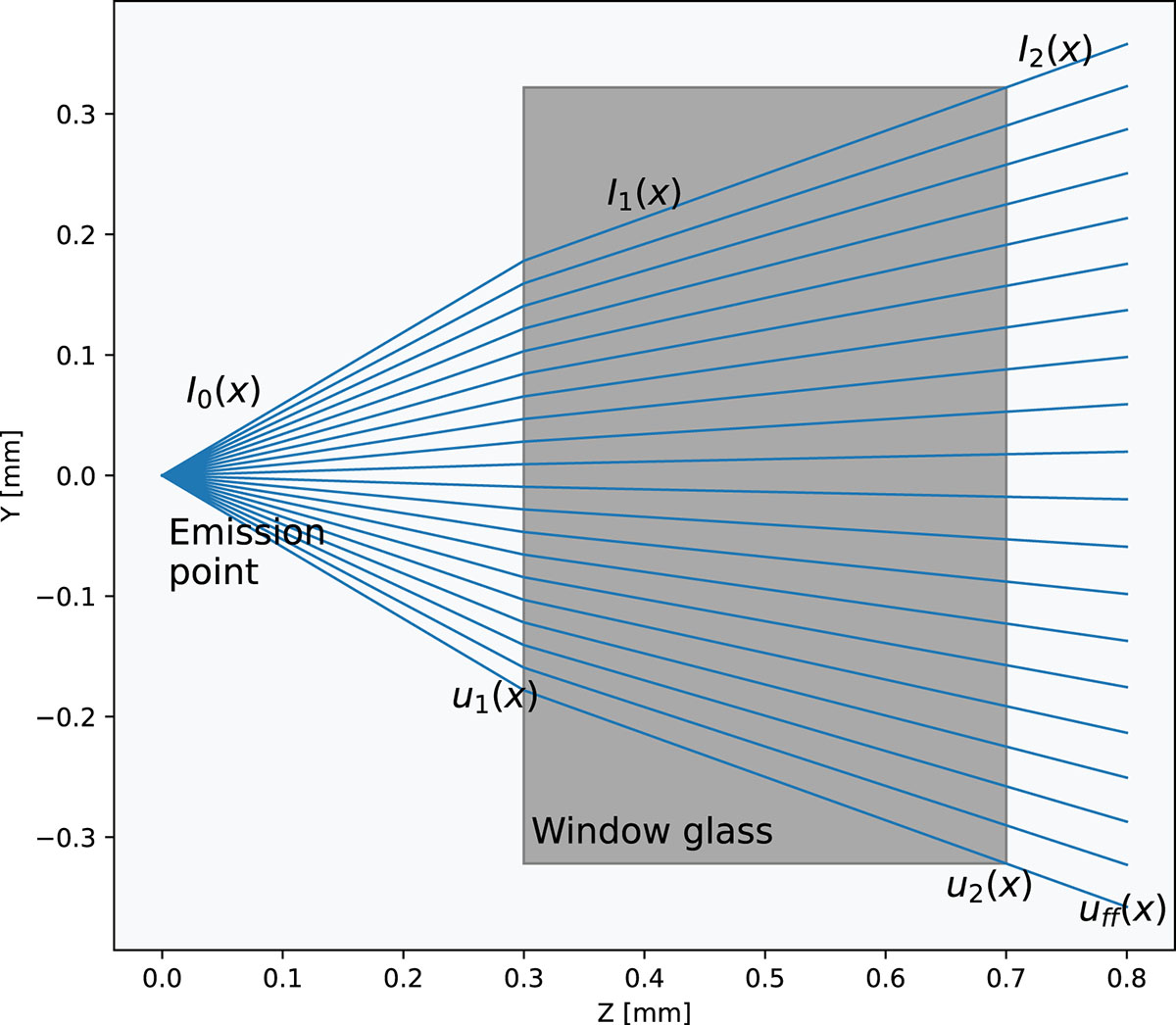

Schematic representation for the laser diode system considered in this case. The emission region is modeled as a point emitter, positioned at the origin. 300 μm above this point, a window glass with a thickness of 400 μm is found. All of the interfaces u(x) and the associated intermediate ray-directions I(x) are directly included in the Hamilton’s characteristic function H shown in equation (1).
