Figure 1
Download original image

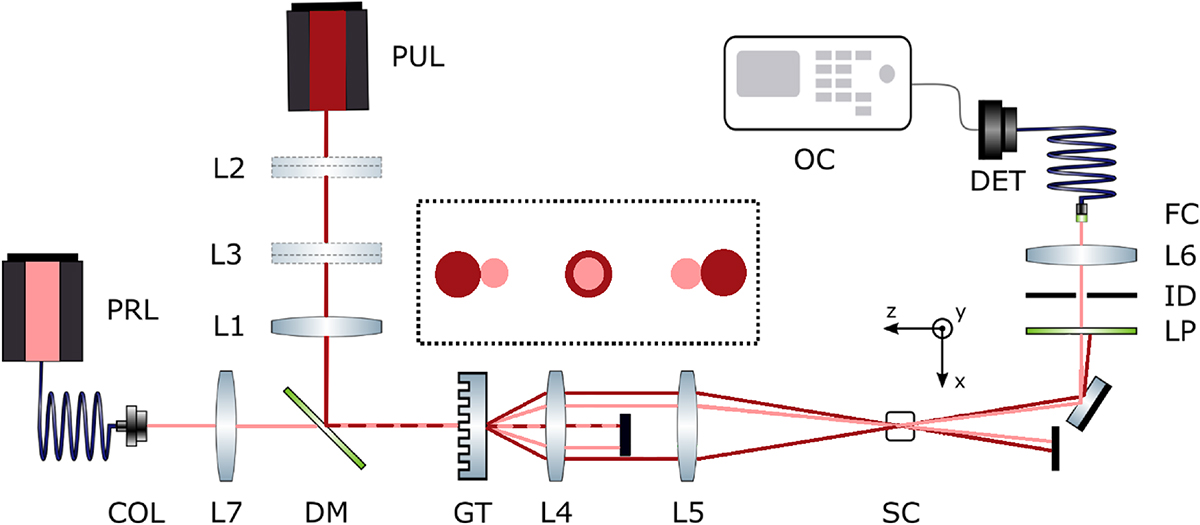

ISBS microscope setup: PUL excitation laser (1035 nm, Coherent Monaco); PRL probe laser (895 nm, DL100 Toptica Photonics); DM dichroic mirror (DMLP650 Thorlabs); COL collimator; L1 to L6 achromatic lenses (AC245-Series Thorlabs); GT grating (custom, grating constant 8 μm); SC sample container (Fused Quartz Cuvettes Thorlabs); ID iris diaphragm; LP long-pass (FEL0850 Thorlabs); DET detector (APD, Femto Berlin); OC oscilloscope.
