Fig. 3
Download original image

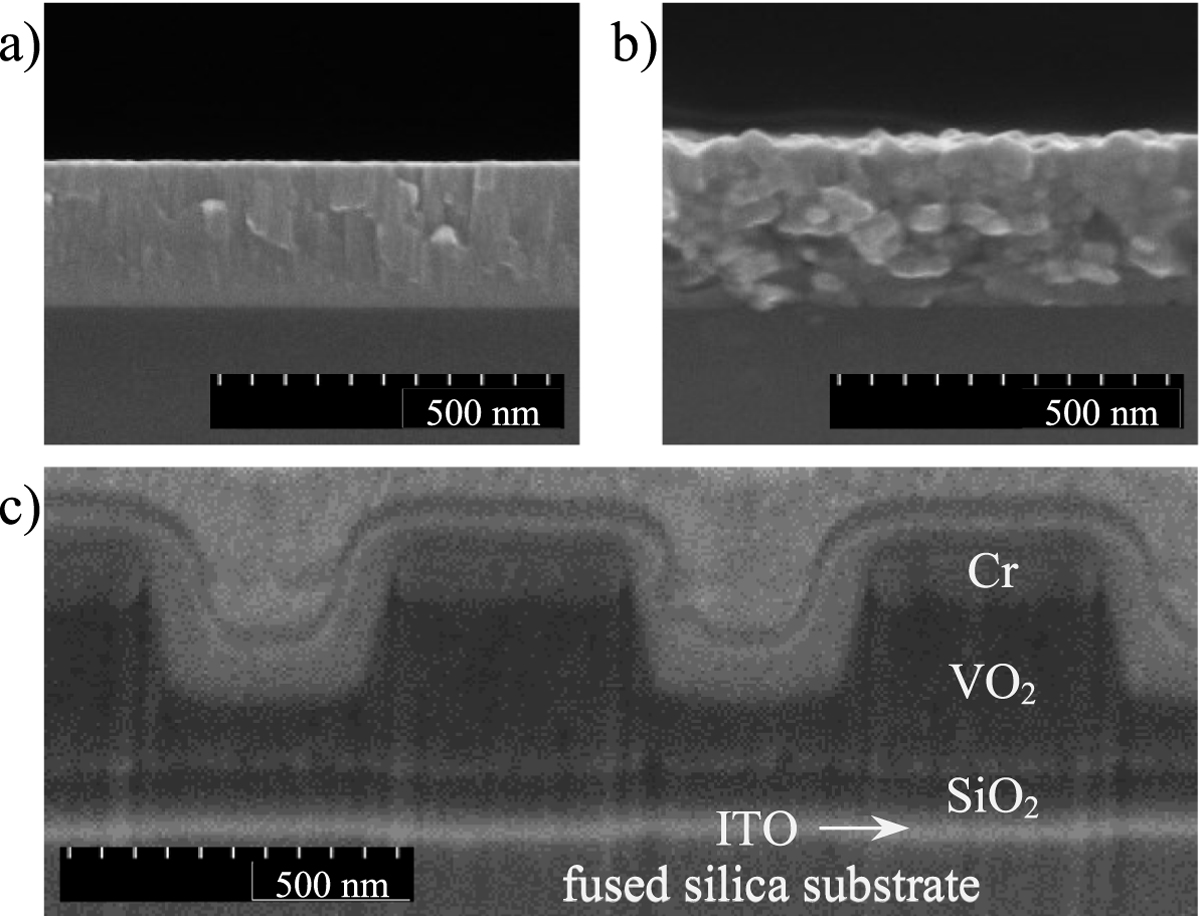

SEM images of a cross-section of a VO2 thin film on silicon substrate, (a) before annealing and (b) after annealing, indicating the growth of thickness. Image (c) shows an etched VO2 grating with additional layers above and below. ITO is the thin bright layer above the substrate.
