Figure 6
Download original image

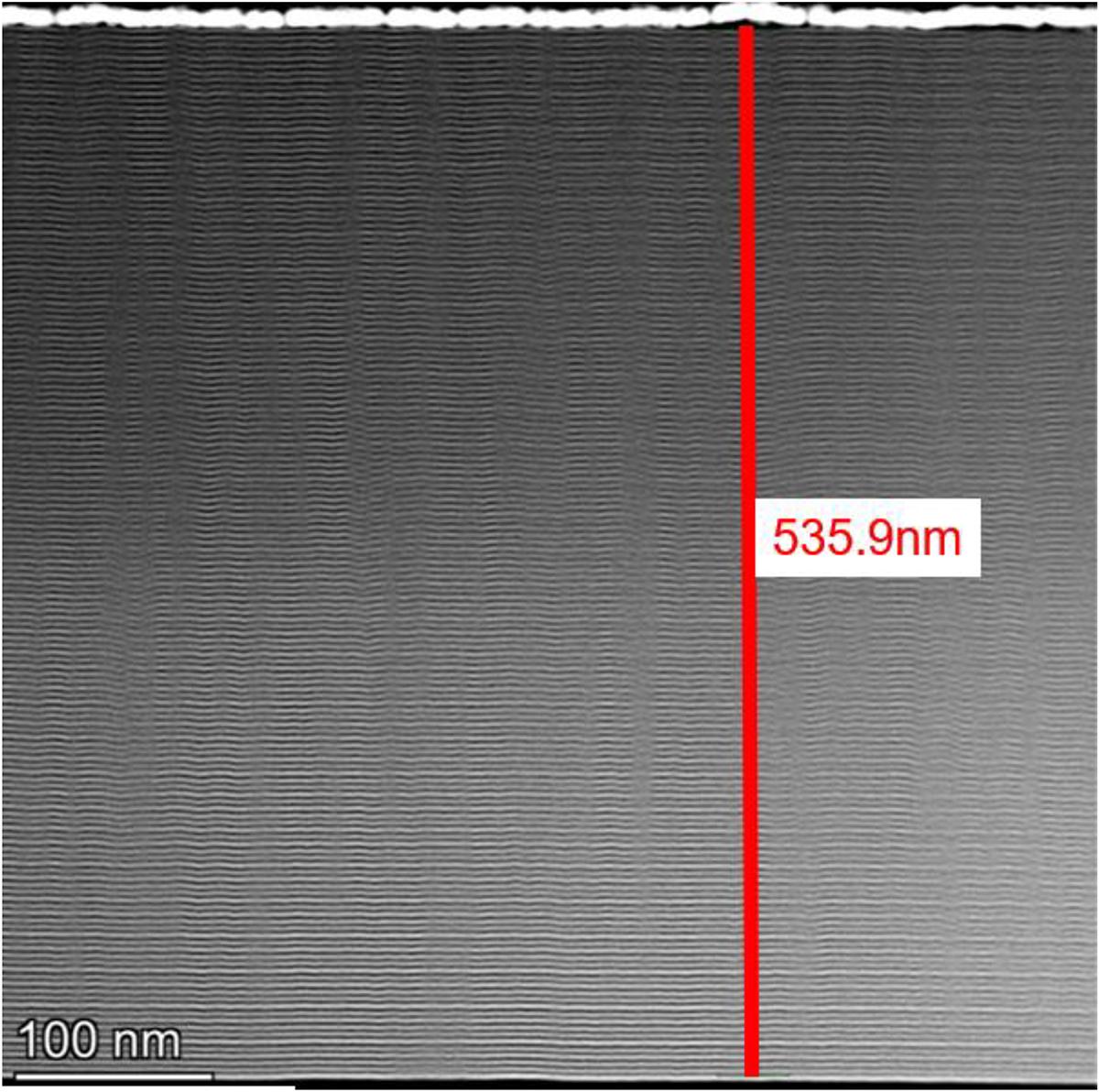

High-angle annular dark-field scanning transmission electron microscopy (STEM HAADF) image of a QNL cross-section which took 30 min of deposition time with rotating table at 6 s/pass. Measured at EMPA using a Titan Themis 200 G3.
