Figure 5
Download original image

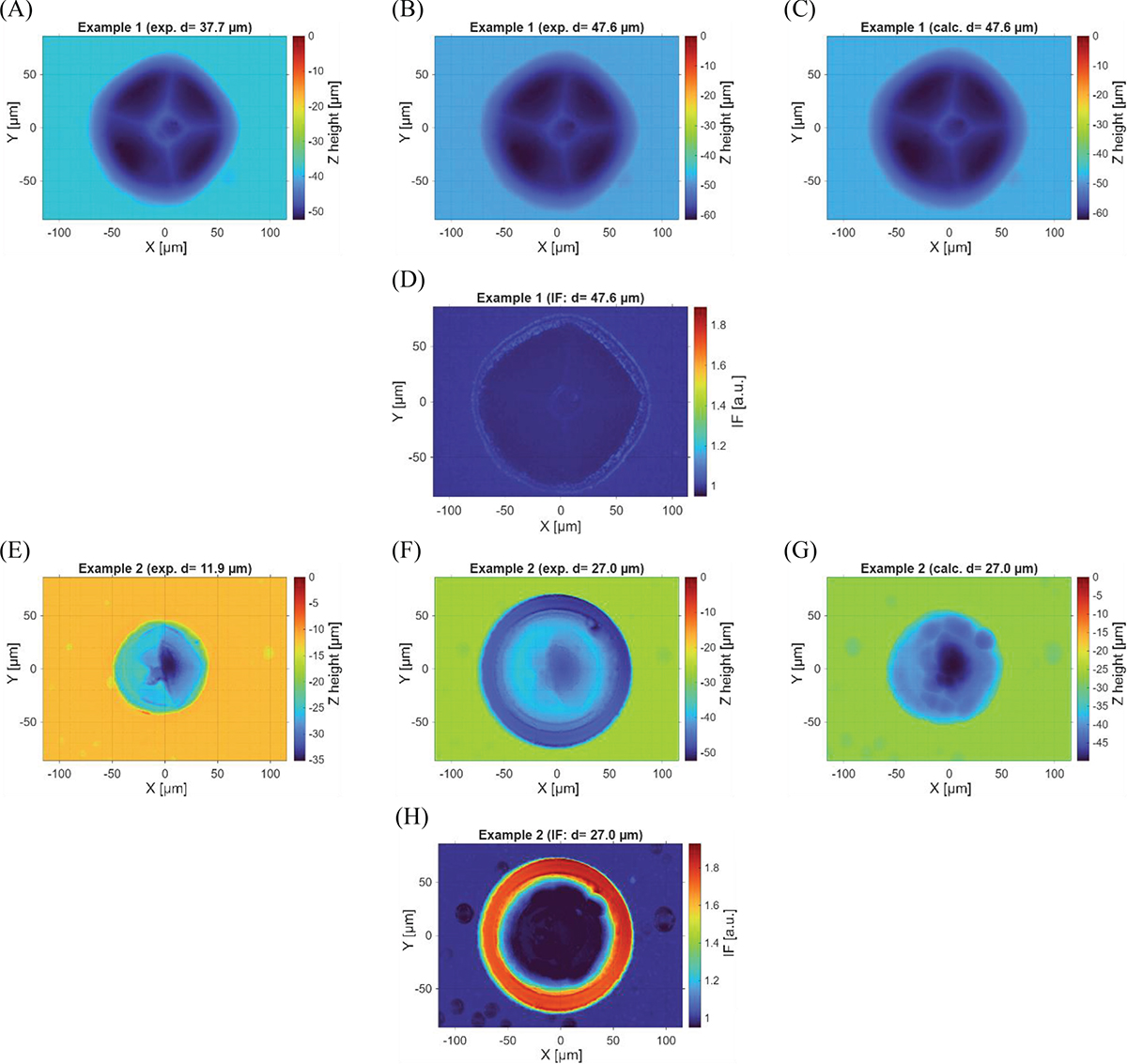

Comparison of measurement (A, B, E, F) to calculated isotropic etched surfaces (C, G) and the resulting map visualizing the isotropic factor IF (D, H). The example A–D shows nearly isotopically etched result, whereas E–H depict significant discrepancy from isotropy.
